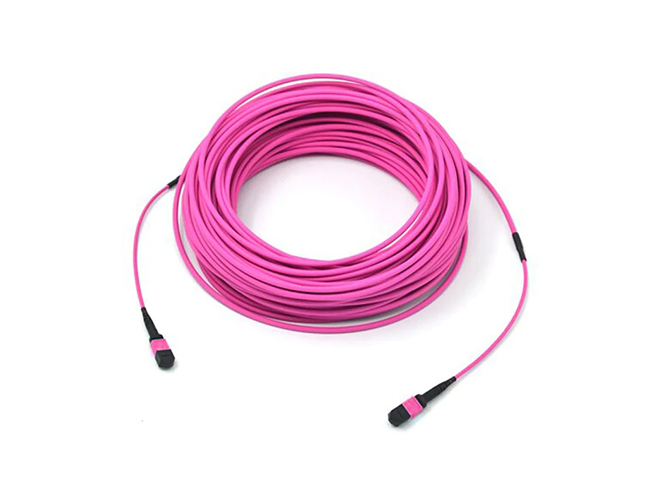

24 Fibers MTP female Multimode OM4 Fiber Trunk Cable

下载技术规格书

细节描述

Achieve higher density, greater throughput, and less cabling by upgrading your fiber infrastructure to MTP 24-strand fiber connectors and cabling. Our MTP rated fiber jumpers are precision made for maximum performance and longevity. Each MTP jumper is the equivalent of pulling twelve standard duplex cables. The sleek MTP connector design reduces tangling and snagging while routing each termination. The push-pull lock mechanism ensures a reliable connection and makes it easy to engage and disengage the connector without sacrificing security.

Product

Connectors MTP to MTP Cable Diameter 3.0mm
Fiber Core OM4 50/125 Multimode Polarity Type A Straight Through (Most common between cassettes)
Color Aqua Attenuation 850 nm: 3.5 dB/km or at 1300 nm: 1.0 dB/km
Jacketing Low Smoke Zero Halogen (LSZH) Standards Attenuation tested in accordance with ANSI/TIA/EIA-455-171-A- 2001
Fiber Type Distribution Environment Operating Temperature: -20°C to +70°C
