12 Fibers MPO female singlemode Fiber Trunk Cable
下载技术规格书细节描述

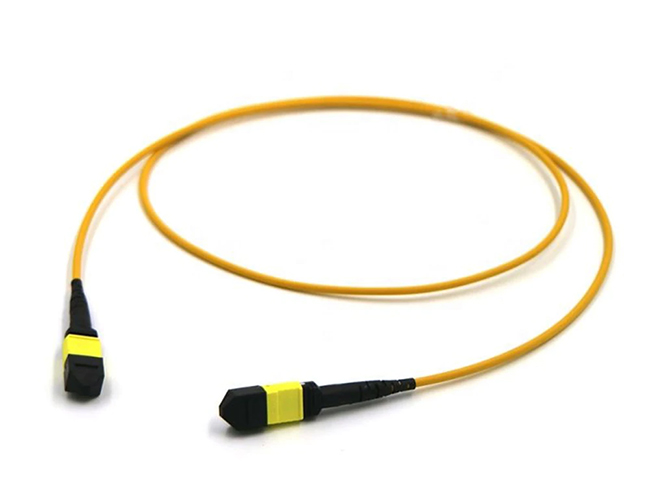

12 Fibers MPO female singlemode is a factory pre-terminated 9/125 OS2 Single Mode MPO trunk cable, which offers the user the advantage of consistent quality, much faster installation, and simpler cable management. The MPO fiber optic trunk cable is manufactured with multiple, 12-strand MPO female to female connectors to give 12 core fiber cables. The trunk cable conforms to Method A (Straight) polarity, and the MTP connector is available upon request. This MPO trunk cable is suitable for use in patch panel connections.
Features
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high back reflection
• Fiber Count: 12 fiber trunk cable
• Suitable for MPO application
• Singlemode OS2 fiber
• Type A polarity for fiber patch panel connection
• Optimized performance – available in elite MPO and discrete premium connector upon request
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE, and RoHS
• LSZH Jacket by Default
| Fiber Type | 9/125μm Singlemode OS2 | Fiber Count | 12-Fiber |
| Connector Type | MPO Female to MPO Female | Polish | APC to APC |
| Cable Length | Customize | Cable Diameter | 3.0 mm |
| Insertion Loss | Standard: ≤0.70dB (0.40dB Typ.) Elite: ≤0.35dB (0.15dB Typ.) |
Return Loss | ≥60dB |
| Polarity | Type A,B,C | Durability | ≥500 times |
| Jacket Material | LSZH | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | Optical switching interframe connections High-density fiber card edge access Array trunk cables Data Center Cabling |
