12 Fibers MTP to 12 LC singlemode Fiber Breakout Cable Type-B Female

细节描述

MTP Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 10/40/100G high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Description

Connector A	US Conec MTP Female (Pinless)	Attenuation at 1550nm	≤0.18 dB/km
Connector B	LC UPC Duplex	Jacket OD	3.0mm
Fiber Mode	OS2 SMF 9/125μm	Fan-Out Diameter	2.0mm
Wavelength	1310/1550nm	Installation Tensile Load	66 N
MTP Connector IL	0.35dB Max (0.15dB Typ.)	Tensile Strength (Long/Short Term)	80N/240N
LC Connector IL	≤0.2dB	Storage Temperature	-40°C to +85°C
MTP Connector RL	≥60dB	Operating Temperature	-10°C to +70°C
LC Connector RL	≥50dB	Cable Jacket	LSZH
Attenuation at 1310nm	≤0.32 dB/km	Fiber Count	12 Fibers

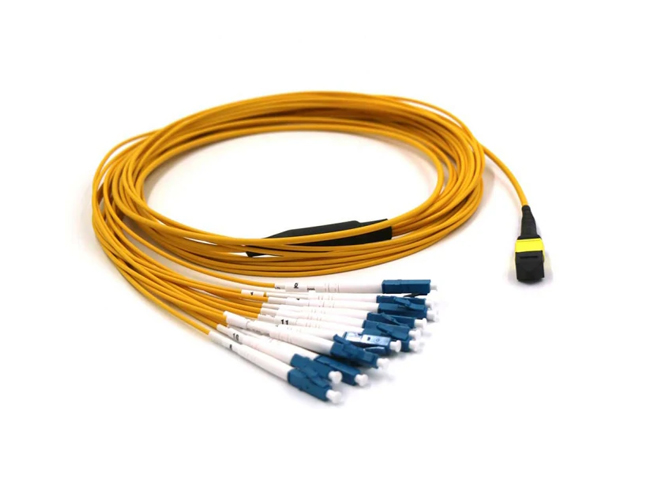

产品展示 Production
