1X32 Cassette Type Fiber Optic Splitter
下载技术规格书细节描述

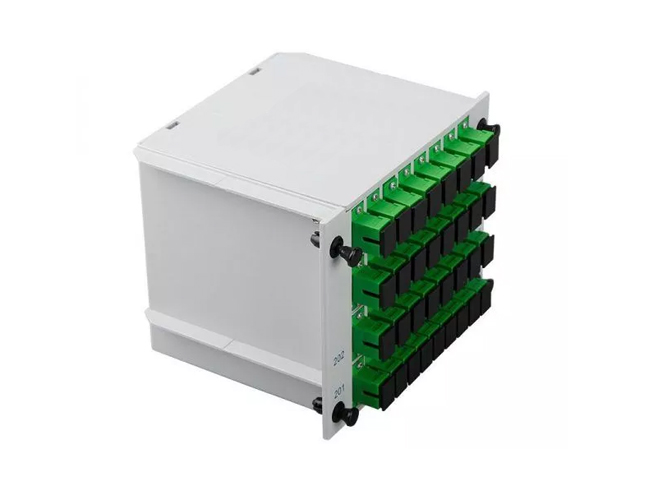

This 1×32 mini cassette type PLC fiber splitter is with plug-in-play design which enables fast deployment of fibers without splicing machine. The mini plug-in type splitter can save time and space but still provides reliable protection for the fiber optic cable. The 1×32 Cassette type PLC fiber splitter is usually installed in the wall mount FTTH box for fiber optical signal distribution.
Fiber optic splitter is one of the most important passive devices in the optical fiber link. PLC splitter is a single mode splitter with an even split ratio from one input fiber to multiple output fibers, which is ideal for EPON, GPON, FTTH, FTTX network. These splitters are used to distribute or combine optical signals, which are convenient for Telcom operators to split optical signals to multiple homes or businesses. PLC splitter provides a low-cost light distribution solution with small size and high reliability.
Feature
•Low
insertion loss and low PDL
•High
channel counts
•Exceptional
reliability and stability
•Wide
Operating Wavelength
•Wide
Operating Temperature
•Compact
design
Specification
1xN
|
Parameter |
Port Configuration |
||||||
|
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
||
|
Fiber Type |
SMF-28e or customer
specified |
||||||
|
Operating
Wavelength(nm) |
1260～1650 |
||||||
|
Insertion Loss(dB) |
Typical |
3.9 |
7.0 |
10.2 |
13.2 |
16.2 |
19.7 |
|
Max |
4.2 |
7.4 |
10.7 |
13.7 |
17.1 |
21.2 |
|
|
Loss Uniformity (dB) |
Max |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Return Loss (dB) |
Min |
50 |
50 |
50 |
50 |
50 |
50 |
|
PDL (dB) |
Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
Directivity (dB) |
Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent
Loss(dB) |
Max |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.8 |
|
Temperature Dependent
Loss(-40~+85°C) |
Max |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
1.0 |
|
Operating Temperature
(°C) |
-40~+85 |
||||||
|
Storage Temperature
(°C) |
-40~+85 |
||||||
2xN
|
Parameter |
Port Configuration |
||||||
|
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
||
|
Fiber Type |
SMF-28e or customer
specified |
||||||
|
Operating
Wavelength(nm) |
1260～1650 |
||||||
|
Insertion Loss(dB) |
Typical |
4.0 |
7.6 |
11.0 |
14.4 |
17.2 |
21.2 |
|
Max |
4.4 |
8.0 |
11.4 |
14.8 |
17.7 |
21.7 |
|
|
Loss Uniformity (dB) |
Max |
1.0 |
1.4 |
1.5 |
2.0 |
2.5 |
2.5 |
|
Return Loss (dB) |
Min |
50 |
50 |
50 |
50 |
50 |
50 |
|
PDL (dB) |
Max |
0.2 |
0.2 |
0.4 |
0.4 |
0.4 |
0.5 |
|
Directivity (dB) |
Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent
Loss(dB) |
Max |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1.0 |
|
Temperature Dependent
Loss(-40~+85°C) |
Max |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
1.0 |
|
Operating Temperature
(°C) |
-40~+85 |
||||||
|
Storage Temperature
(°C) |
-40~+85 |
||||||
Cassette
dimension
|
Item |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x164 |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
|
(L*W*H) |
118*100*25 |
118*100*50 |
118*100*102 |
11*100*205 |
118*100*25 |
118*100*50 |
118*100*102 |
||||
Application:
1. FTTX Systems
2. LAN, WAN and Metro Networks
3. Analog/Digital Passive Optical Networks
CATV Networks
4. Other applications in fiber optic
systems
