1x32 Rack Mount PLC Splitter FTTH optical splitter
下载技术规格书细节描述

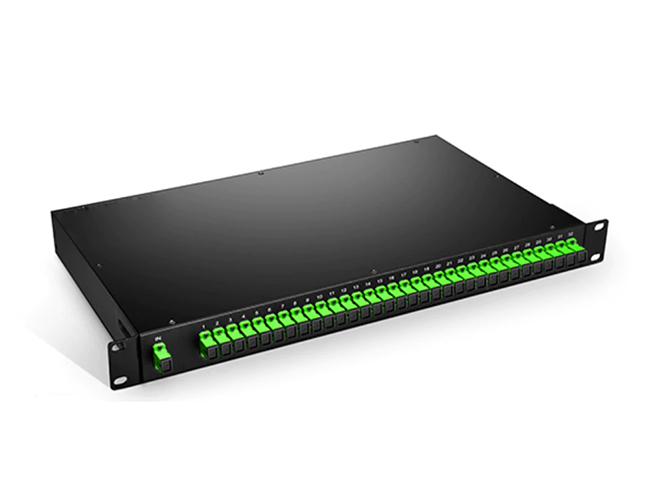

Rack Mount PLC Splitter is designed for Central Office (CO) and Outside Plant (OSP) applications they provide superior optical performance, network reliability/stability and future support of next generation NG-PON2 technologies.
As an important role in FTTH Networks, SC APC splitter is fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability. 1x32 optical splitter comes with connector LC APC and SC APC splitter, various GPON splitter types are available for OEM/ODM by a professional optical fiber splitter manufacturers.
The 1U 19'' Rack mount design makes PLC optical splitter easily mounted in network cabinet connecting the Central Office (CO) and terminal apparatus for uniform optical signal distribution in fiber to the point (FTTx) deployments and other passive optical networks (e.g., EPON, GPON, BPON).
FEATURES
- Low Insertion loss and Low PDL
- High Reliability and Stability
- Good channel-to-channel uniformity
- Silk screened port number for easy identification
- Wide Operating Wavelength: From 1260nm to 1650nm
- Wide Operating Temperature: From -40℃ to 85℃
- Fits 19″ standard integrated distribution cabinet or network cabinet
- Stability Telecordia GR-1221 and GR-1209
Fiber Optic Splitter Specifications
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |||
| Working Bandwidth (nm) | 1260-1650 | ||||||||
| Insertion Loss (dB) Max w/o connectors | 3.8 | 7.1 | 10.2 | 13.5 | 16.8 | 20.2 | |||
| Insertion Loss (dB) Max with connectors | 4.1 | 7.4 | 10.5 | 13.8 | 17.1 | 20.5 | |||
| Wavelength Dependent Loss (dB) Max. | 0.2 | 0.3 | 0.4 | 0.6 | 0.8 | 1 | |||
| Return Loss (dB) Min.(APC) | 55 | ||||||||
| Temperature Dependent Loss(dB) Max | 0.5 | ||||||||
| Stability in Hot Environment (dB/°C) Max | 1 | ||||||||
| Uniformity (dB) Max | 0.6 | 0.6 | 0.8 | 1.1 | 1.5 | 2 | |||
| Polarization Dependent Loss (dB) Max | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | |||
| Orientation (dB) Min | 50 | ||||||||
| Power (mW) Max | 300 | ||||||||
| Steel Tube Size(mm) | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | |||
| Optical Fiber | SMF-28, G657A1, G657A2 or customized | ||||||||
| Input / Output length | 1meter standard or customized length | ||||||||
| Cable Color | White or customized | ||||||||
| Cable Diameter | 250um or 900um | ||||||||
| Connector | SC APC, SC UPC or without connector | ||||||||
| Operating Temperature (℃) | -40 to 85 | ||||||||
| Storage Temperature (℃) | -40 to 85 | ||||||||
| Standard | Telcordia GR-1209, Telcordia GR-1221, IEC 61300, IEC 6175321 | ||||||||
