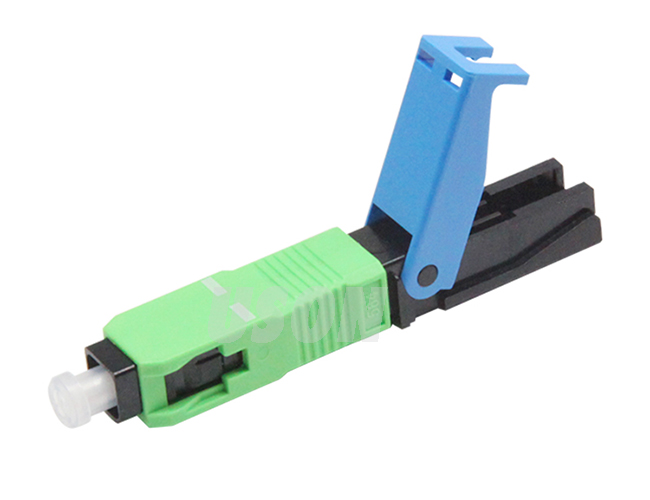

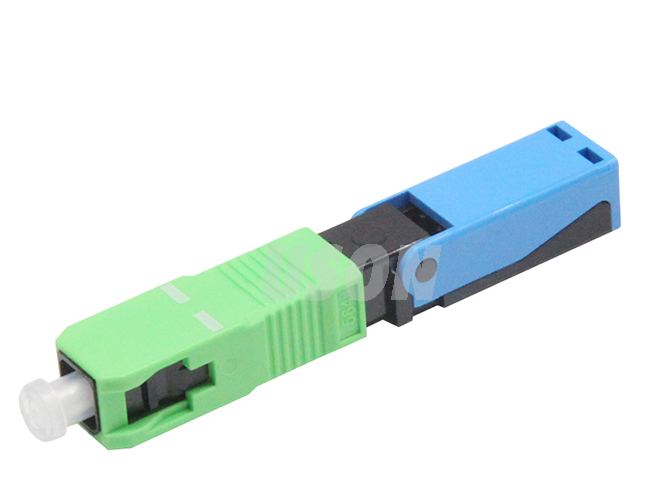

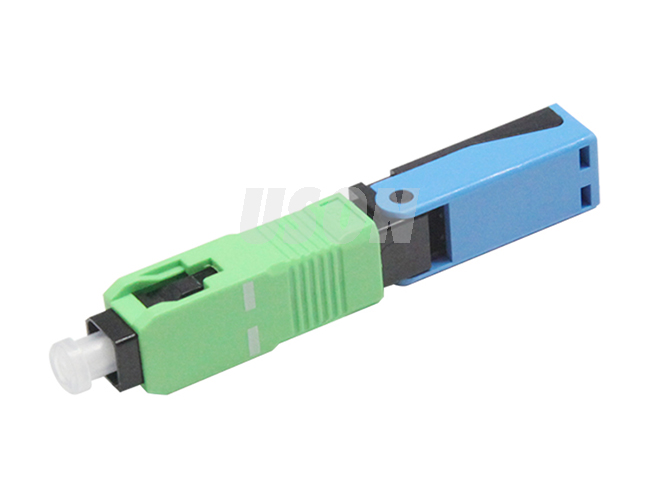

快速连接器 QSC54K2-APC
下载技术规格书细节描述
Feature
•Fiber embedded,
no polishing and epoxy
•Highly stable
and reliable performance
•High
success rate design and technology
•Reusable
termination capability
•Use high
precision and quality zirconia ferrule
•Comply with IEC
and RoHS
•Flammability
Grade: UL94-V0
Specifications
|
Item No. |
Item Name |
Spec. Value |
|
1 |
Insertion Loss (dB) |
Max.≤0.5dB, Typical≤0.3dB |
|
2 |
Return Loss (dB) |
Max.APC≤-50dB, Typical≤-55dB Max UPC≤-40dB, Typical≤-45dB |
|
3 |
Ferrule End Face |
A Zone no scratches at 400X |
|
4 |
3D Interferometry |
Complies to IEC 2009 |
|
5 |
Average Assembling Time |
≤ 3 min |
|
6 |
First-Time Done Yield Rate |
≥ 95% |
|
7 |
Re-Operation Times |
Max. 5 times |
|
8 |
Repeatability (±0.2dB) |
≥ 90% |
|
9 |
Appearance |
No Defects |
Application:
FTTH network
Fiber optic cable distribution network
