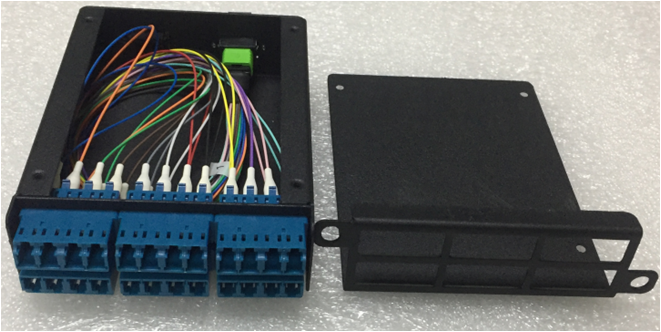

MPO/MTP Module
FEATURES
•MPO/MTP connector on one end, with LC or SC connectors on the other
end
•8/12/16/24/32/48/72 with single mode and multimode options
•G657A1/G657A2/G657A3/OM3/OM4/OM5 options available
• MTP® (US Conec) brand or MPO standard compliant multifiber
connector
• Connector's design complies with IEC 61754-7 standards
• Polarity method A, B or C
• LSZH, OFNP, OFNR cable jacket types selection
• Rapid deployment, high density and high reliability
• Extremely low insertion loss and high return loss
• Telcordia GR-1435-CORE issue 2 compliant
• RoHS and REACH materials compliant
Specification
|
Items |
Single mode |
Multimode |
|
Insertion Loss |
<0.35dB |
<0.35dB |
|
Return Loss |
>50dB(UPC); >60dB(APC) |
>40dB |
|
End-face Quality |
Complies with 61300-3-35 |
Complies with 61300-3-35 |
|
Insert-pull test |
500times |
500 times |
|
Operation temperature |
-20°C to +70°C |
|
|
Fiber type |
SM/OM1/OM2/OM3/OM4/OM5 |
|
|
Standard |
IEC/ Telcordia GR326
|
IEC/ Telcordia GR326 |
Application:
Telecommunication
Optical communication equipment
Ethernet network
LAN and WAN system
Data center
